Evaluation Boards
Evaluation Boards
Firecomms Evaluation Boards aim to simplify the process of prototyping during the early stages of system design and evaluation. The board consists of a single connector pre-mounted on a simple PCB with passive components that allow easy DC power application.
Please find available standard Evaluation Boards and user guides below:
Read more about Evaluation Board
Click the button below for product inquiries.
Delivery Time
Delivery Time
By request
General Specifications
General Specifications
Share
Product Features and Specifications

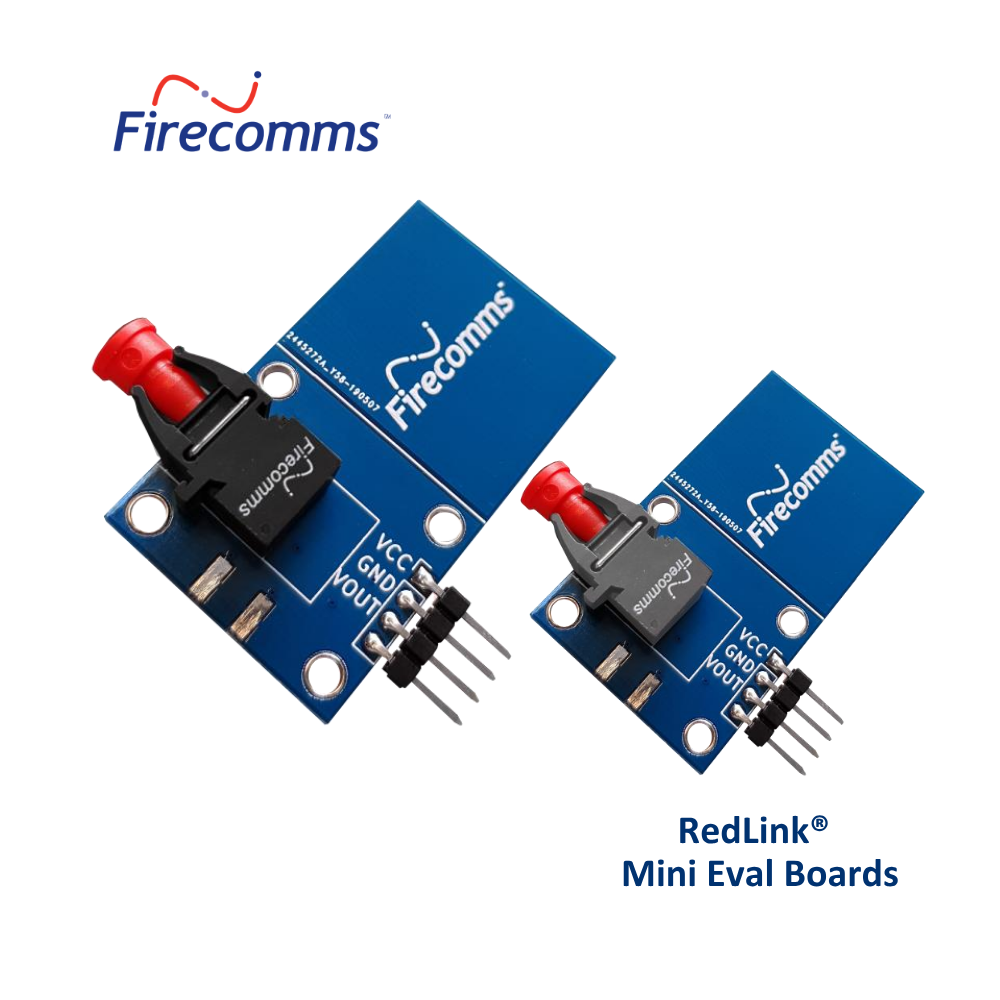

RedLink® Mini Eval Boards
• DC- 5/10/50 MBd RedLink® Mini Eval Boards
• Non-standard Evaluation Boards are available upon request with extended delivery times
| EVAL-FT50MHNR | 50 MBd Transmitter |
| EVAL-FR50MHNR | 50 MBd Receiver |
| EVAL-FT10MHNR | 10 MBd Transmitter |
| EVAL-FR10DHIR | 10 MBd Receiver |
| EVAL-FT05MHNR | 5 MBd Transmitter |
| EVAL-FR05DHIR | 5 MBd Receiver |

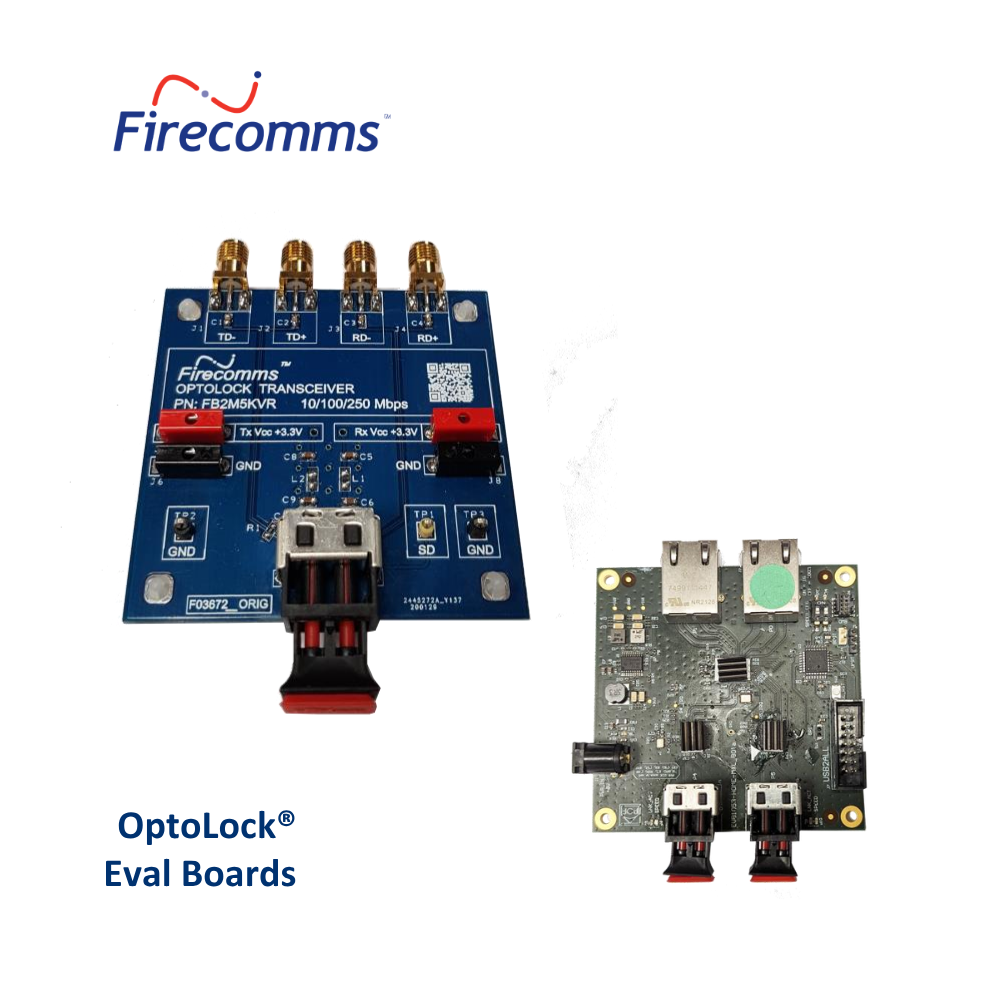

OptoLock® Eval Boards
| EVAL-FB2M5KVR | 10-250 Mbps Signal Detection |
| EVAL-FB2M5KRR | 10-250 Mbps RSSI |
| EVAL-FE50MKIR | DC-50 MBd Inverting Output |
| EVAL-FE50MKNR | DC-50 MBd Non-Inverting Output |
| EVB1053-HOME-MXL | Multilevel encoded GigE |

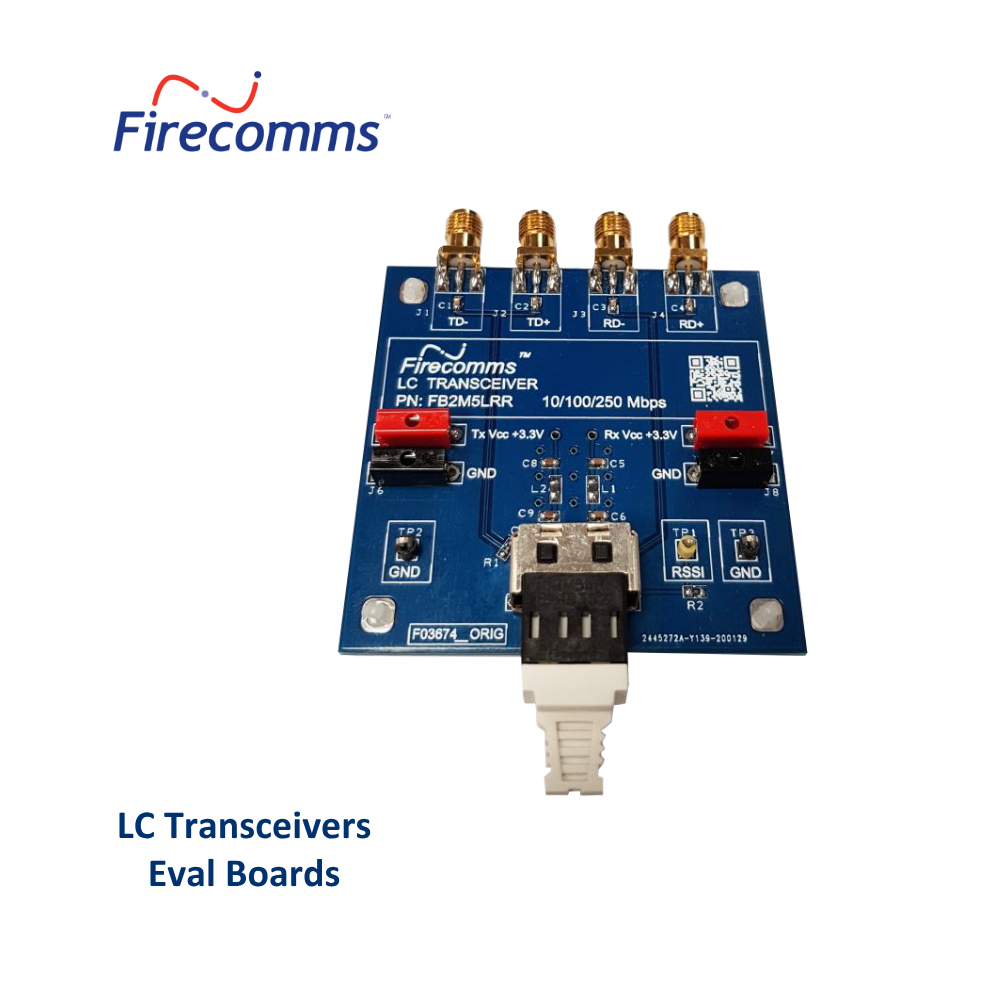

LC Transceiver Eval Boards
| EVAL-FB2M5LVR | 10-250 Mbps Signal Detection |
| EVAL-FB2M5LRR | 10-250 Mbps RSSI |
| EVAL-FE50MLIR | DC-50 MBd Inverting Output |
| EVAL-FE50MLNR | DC-50 MBd Non-Inverting Output |
