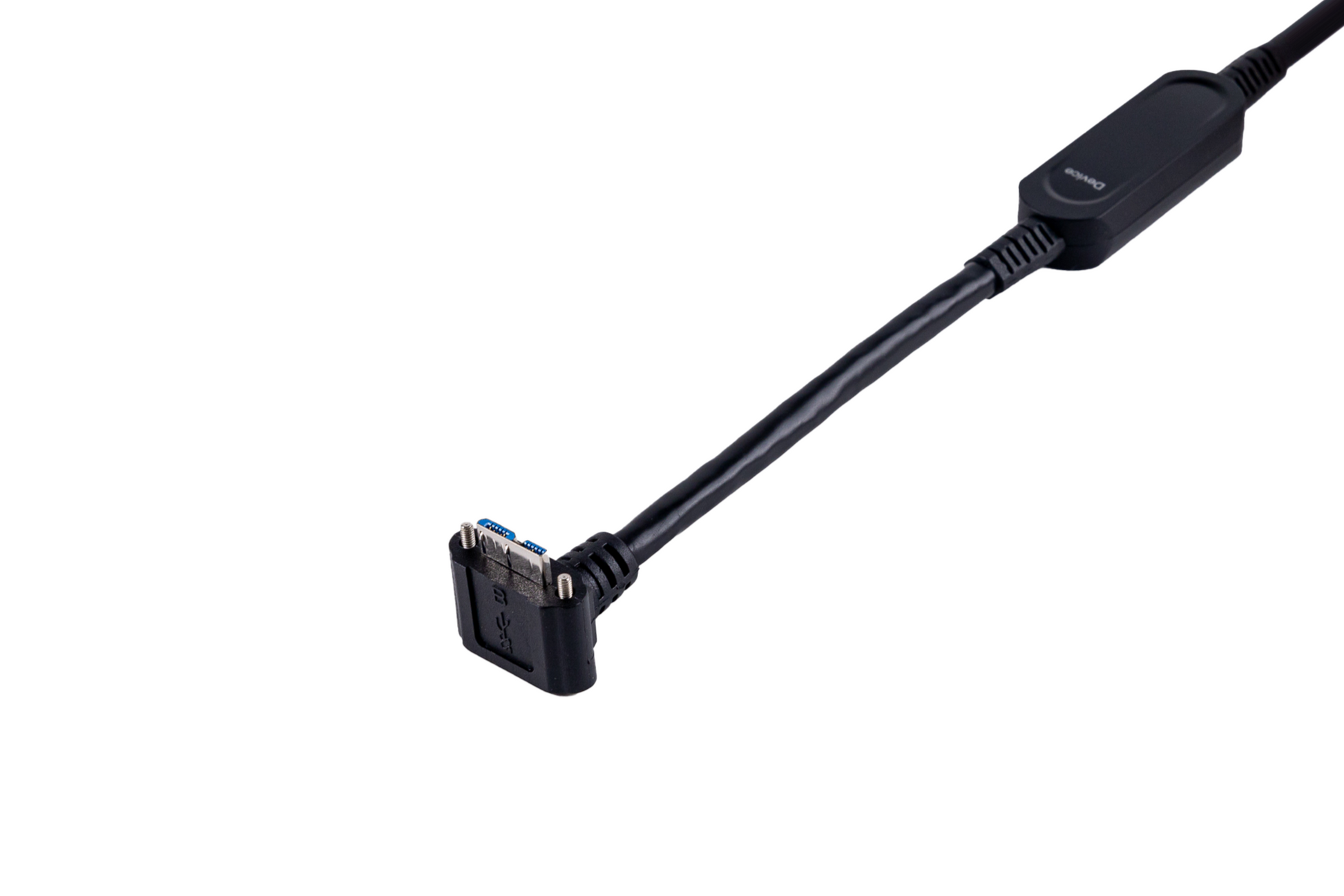

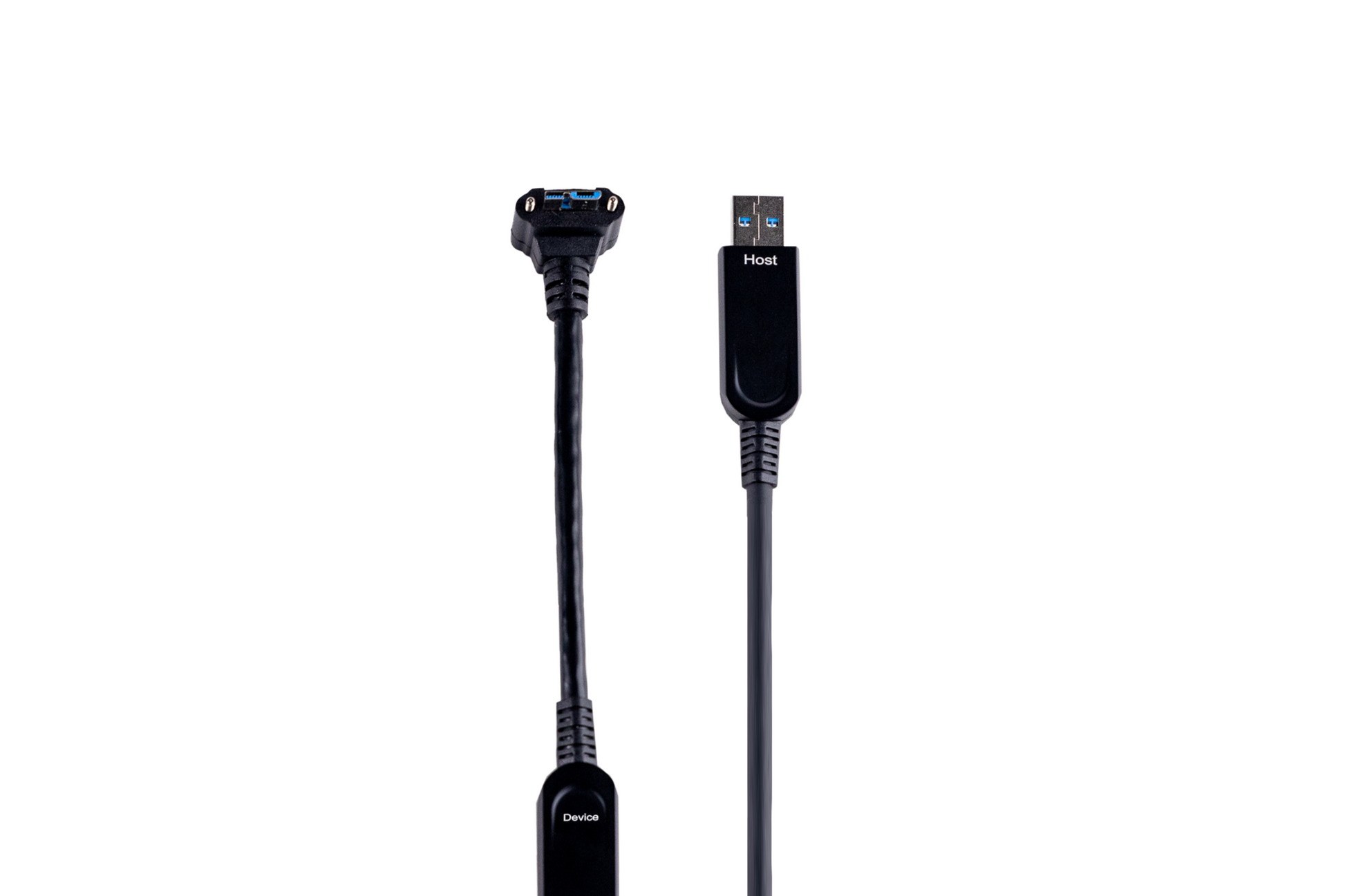

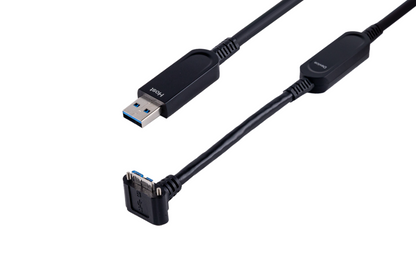

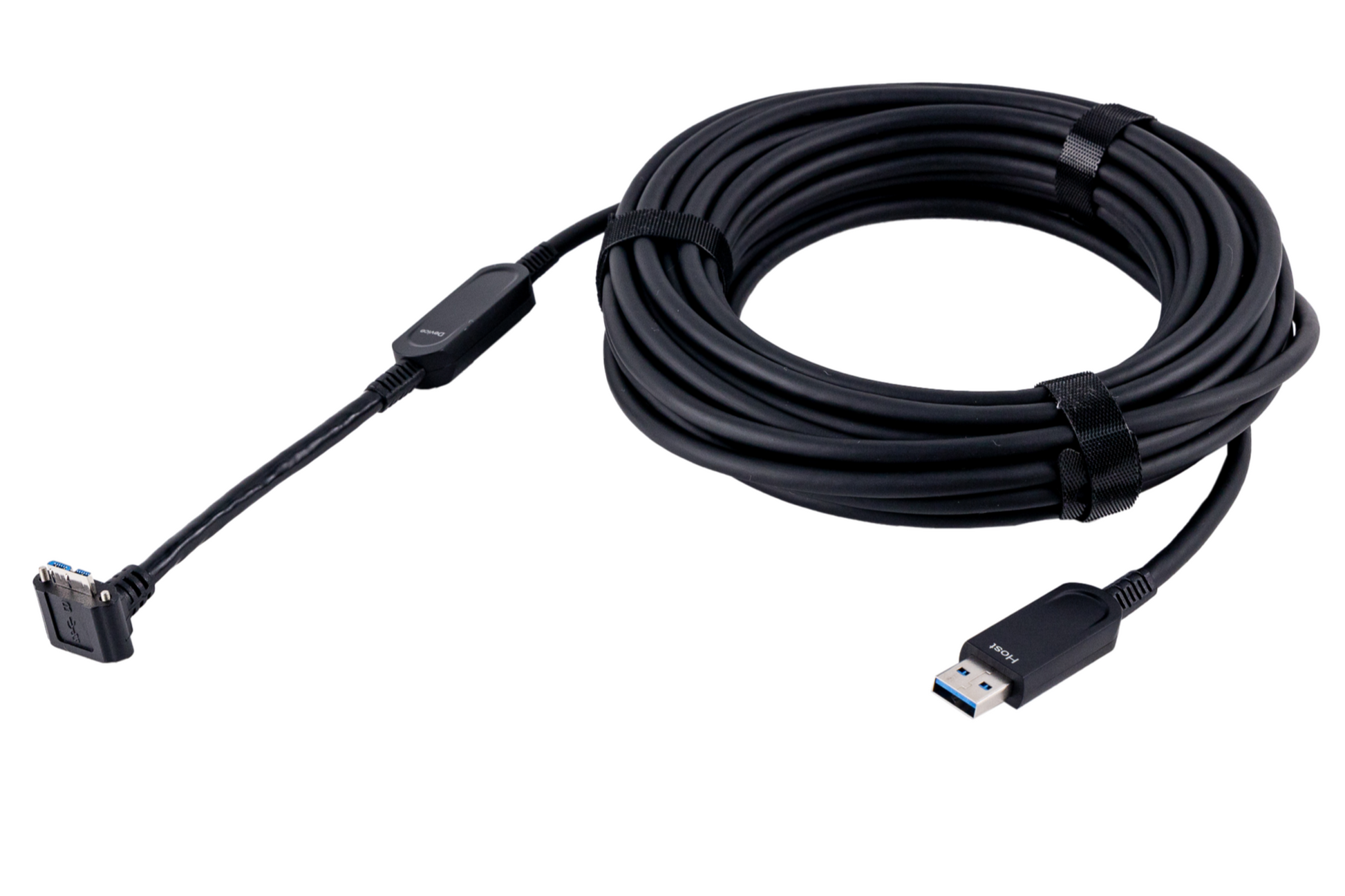

USB3.2 AOC High Flex/Type-A to Micro-B Down Angled with Screwlock

USB3.2 AOC High Flex/Type-A to Micro-B Down Angled with Screwlock

USB3.2AOC-A/1-CRS/DA-xM-HF(Black,OD5.8,Gen2)

Shipping only for Japan

¥35,470 JPY
¥35,470 JPY
Sale Sold out
Taxes included.
Length

Stock: 6 in stock

Delivery Time

3-5 days

General Specifications

• Assembly Method: Metal shell and PVC SR molding on both USB plugs
• Cable Color & Material: BLACK & PVC
• Length: 5M、10M
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Comply with USB3.2 Gen2 SuperSpeed
2. USB3.2 Micro-B connector with screwlock
3. BUS-powered and no external power needed
4. Plug and play functionality and no drivers required
5. Good flexibility for industrial application
6. RoHS / REACH / UL compliant
7. This product offers diverse overmolding, length, shielding, color and angled connector options. ( For customized service, please fill out the inquiry form in Contact Us page. We will reply you soon.)

Specifications


  Connector Interface   Type-A / Micro-B
  USB Version   USB3.2 Gen2
  Rated Power   5V / 0.9A
  Max. Length   30m
  Operation and Storage Temperature
Operation Temperature   0 °C ~ 60 °C
Storage Temperature   -20 °C ~ 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Automatic optical inspection
2. Image inspection application
3. Visual positioning application
4. Object measurement/ Sorting application

Read Product Knowledge

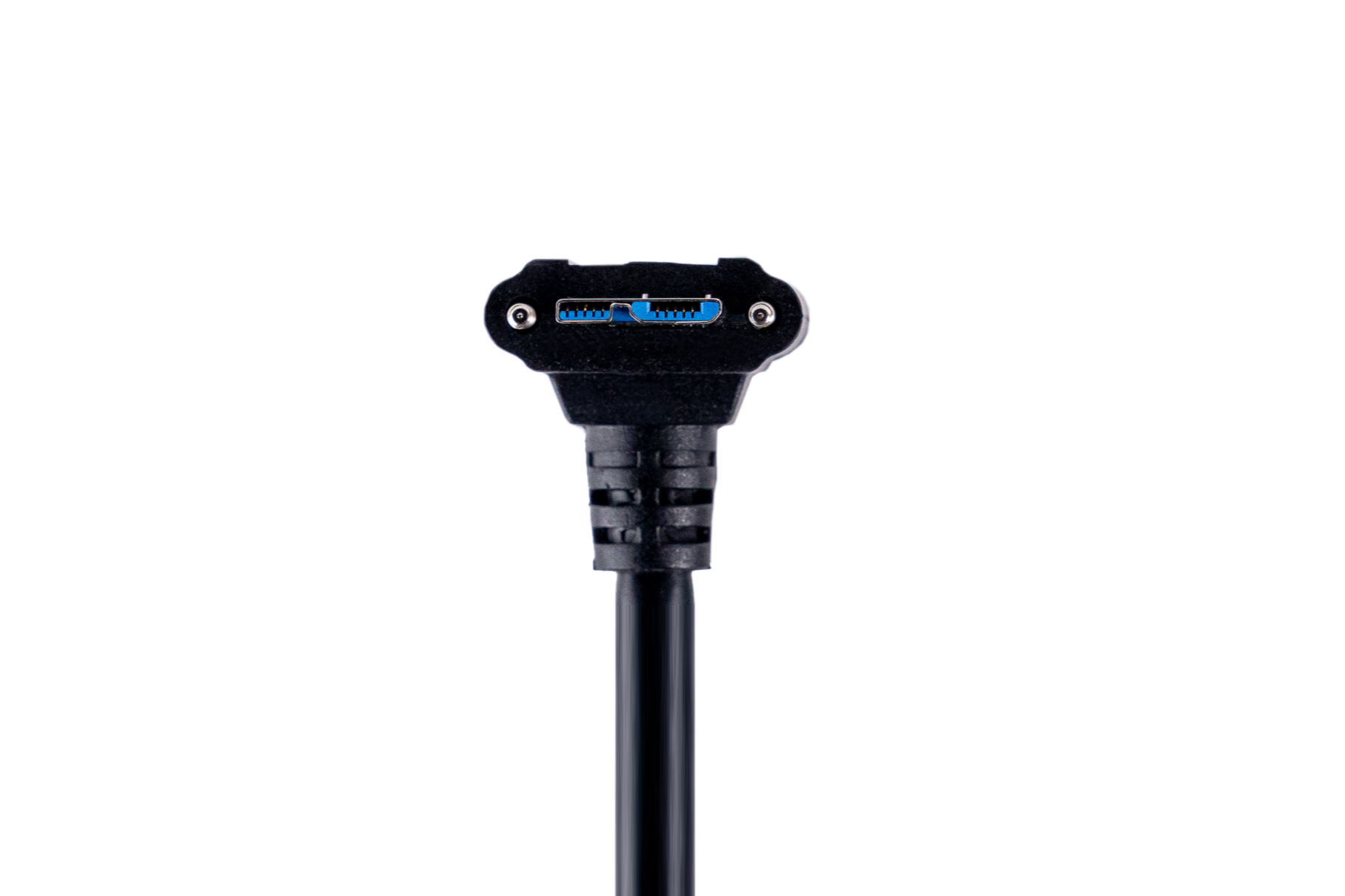

Front View of Connector

Certifications
